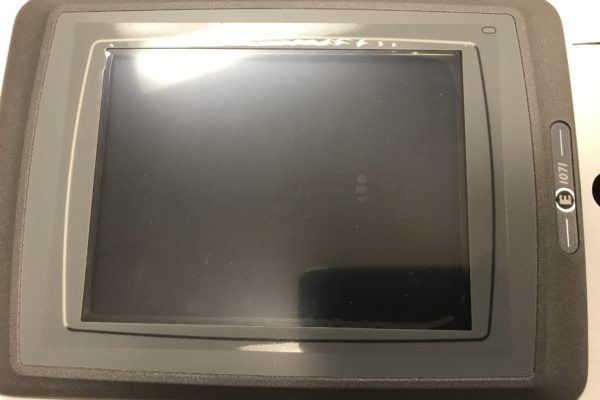

Mitsubishi E Panels
Software: Mitsubishi Epanel
PLC Type: Mitsubishi FX Series PLC
Duration: 2 days
Pre-requisites: Knowledge of Mitsubishi PLCs
Maximum Delegates: 6
Course Price: £795.00 (exc. VAT)
Brief Description
- Be able to recognise E Designer hardware and be able to replace modules when a fault occurs.
- Be able to operate the E Designer software to make it perform certain tasks.
- Understand basic concept of tags etc and communications with the PLC
- Be able to backup and restore a E Panel program when required.
- Be able to perform basic system diagnostics when a problem occurs.
Course Content
- Getting Started with a E Panel Terminal
- Connecting Communications Cables
- Creating a E Panel Application File
- Defining Communications Parameters
- Creating a Tag Database
- Creating Screen Text and Screen Selectors
- Downloading an Application
- Adding Controls to a PanelView Application
- Creating Error Messages
- Creating a Report for a E Panel Application
- Troubleshooting a E Panel Terminal and Application
- Generation of documentation to assist fault finding
Course Equipment (per delegate)
- Mitsubishi PLC
- E Panel
- PC or Laptop
- Simulator
